10kV 20kV 35kV indoor-outdoor type wall bushing aluminium busbar
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK Price
/pcs
Share:
Top Selling Products
Product Details:

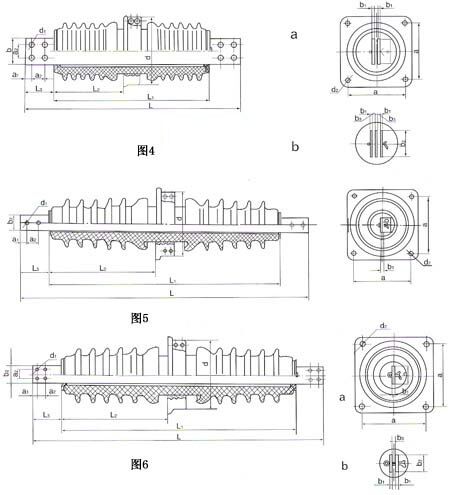

| Model | Diagram Number | Rated Voltage kV | Rated Current A | Total Length L | L1 | L2 | Terminal Connectors | Conductor | Installation Flange | Weight Kg | ||||||||||
| L3 | a1 | a2 | d1 | Hole Number | b1 | b2 | b3 | Busbar Quantity | d | a | d2 | Hole Number | ||||||||
| CWL-10/200 | 1 | 10 | 200 | 520 | 360 | 158 | 75 | 15 | 30 | 11 | 2 | 4 | 30 | / | 1 | 114 | 175 | 14 | 2 | 5.7 |
| CWL-10/400 | 1 | 10 | 400 | 520 | 360 | 158 | 75 | 15 | 30 | 11 | 2 | 5 | 40 | / | 1 | 114 | 175 | 14 | 2 | 5.8 |
| CWL-10/600 | 1 | 10 | 600 | 560 | 360 | 158 | 95 | 20 | 40 | 13 | 2 | 8 | 40 | / | 1 | 114 | 175 | 14 | 2 | 6 |
| CWL-10/1000 | 2a | 10 | 1000 | 520 | 360 | 158 | 75 | 15 | 30 | 14 | 4 | 12 | 60 | / | 1 | 145 | 150 | 14 | 4 | 7.7 |
| CWL-10/1500 | 2b | 10 | 1500 | 520 | 360 | 158 | 75 | 15 | 30 | 14 | 4 | 12 | 60 | 10 | 2 | 145 | 150 | 14 | 4 | 8.8 |
| CWL-10/2000 | 3a | 10 | 2000 | 600 | 365 | 158 | 115 | 25 | 50 | 18 | 4 | 10 | 100 | 10 | 2 | 200 | 200 | 14 | 4 | 14.5 |
| CWL-10/3000 | 3b | 10 | 3000 | 600 | 365 | 158 | 115 | 25 | 50 | 18 | 4 | 12 | 100 | 10 | 3 | 200 | 200 | 14 | 4 | 17 |
| CWL-20/2000 | 4a | 20 | 2000 | 835 | 590 | 255 | 115 | 25 | 50 | 18 | 4 | 10 | 100 | 10 | 2 | 250 | 220 | 15 | 4 | 29.6 |
| CWL-20/3000 | 4b | 20 | 3000 | 835 | 590 | 255 | 115 | 25 | 50 | 18 | 4 | 12 | 100 | 10 | 3 | 250 | 220 | 15 | 4 | 33 |
| CWL-35/200 | 5 | 35 | 200 | 980 | 815 | 372 | 75 | 15 | 30 | 11 | 2 | 4 | 30 | / | 1 | 220 | 200 | 15 | 4 | 31 |
| CWL-35/400 | 5 | 35 | 400 | 980 | 815 | 372 | 75 | 15 | 30 | 11 | 2 | 5 | 40 | / | 1 | 220 | 200 | 15 | 4 | 31.2 |
| CWL-35/600 | 5 | 35 | 600 | 1020 | 815 | 372 | 95 | 20 | 40 | 13 | 2 | 8 | 40 | / | 1 | 220 | 200 | 15 | 4 | 31.6 |
| CWL-35/1000 | 6a | 35 | 1000 | 980 | 815 | 372 | 75 | 15 | 30 | 14 | 4 | 12 | 60 | / | 1 | 245 | 220 | 15 | 4 | 33 |
| CWL-35/1500 | 6b | 35 | 1500 | 980 | 815 | 372 | 75 | 15 | 30 | 14 | 4 | 12 | 60 | 10 | 2 | 245 | 220 | 15 | 4 | 34.6 |
