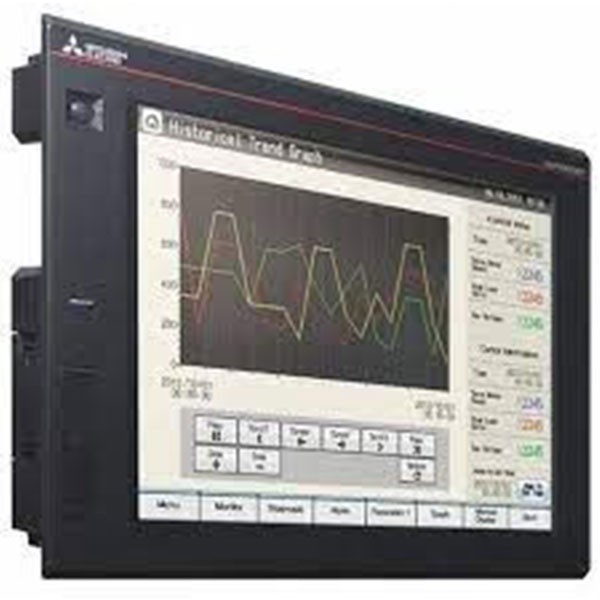

The Mitsubishi Electric GT1695M-XTBA is a 15-inch Human-Machine Interface (HMI) with a graphical touchscreen. This advanced HMI device is designed for industrial automation applications, providing a user-friendly interface for monitoring and controlling machinery and processes.

Key Features

• Display and Touchscreen:
  • 15-Inch TFT Color Display: Provides a large, clear, and vibrant display for easy viewing of graphical data and control elements.
  • Resolution: High-resolution screen ensures detailed and sharp images.
  • Touchscreen Interface: Responsive touchscreen for intuitive interaction with the HMI.
• Connectivity:
  • Multiple Communication Ports: Supports various industrial communication protocols and interfaces, including Ethernet, RS232, RS422/485, and USB.
  • Expandability: Can be connected to other Mitsubishi automation devices, such as PLCs, servos, and inverters.
• Performance:
  • Powerful Processor: Ensures smooth operation and quick response times.
  • Memory: Sufficient onboard memory for running complex applications and storing data.
• Software Support:
  • GT Designer3: Programming and configuration software for designing and deploying HMI applications.
  • Integration: Mitsubishi Electric’s automation ecosystem, including the MELSEC series PLCs.

Installation and Usage Tips

• Mounting: Ensure proper mounting in control panels or enclosures, following Mitsubishi’s installation guidelines.
• Power Supply: Connect to a stable power source with the recommended voltage.
• Programming: Use GT Designer3 software for creating user interfaces and configuring the HMI’s functionality.
• Maintenance: Keep the touchscreen clean and regularly check connections for reliability.
