Product Details:

Description:

Outdoor support rod polymer insulators with organosilicon protective sheath of IOSK 4/10 UHL1 type are designed for insulation and fastening of live parts in electrical apparatuses, switchgears of power plants and AC substations with a voltage of up to 10 kV. As an element that absorbs mechanical loads, insulators use a high-strength fiberglass rod, which is commensurate in strength with alloyed structural steels. The highhydrophobicity of the protectivesheath made of organosilicon rubber (silicone) in almost any conditions of contaminationensures low leakage currents (1 – 2 orders of magnitude lower than that of porcelain insulators), which, in turn, increases the discharge characteristics and has a positive effect on energy saving.The insulator has several modifications in terms of construction height, length of leakage path and dimensions of fastening holes in the flanges.

Technical Specification:

Parameter name	Meaning
Rated operating voltage, kV	10
Maximum operating voltage, kV	12
Lightning pulse test voltage, kV, not less than	75
Dry power frequency test voltage, kV, not less than	42
Test voltage of power frequency in the rain, kV, not less than	28
50% discharge voltage of the power frequency of the contaminated and moistened insulator, kV, not less than	13
Mechanical breaking force at bending, kH, not less than	4
Mechanical breaking force at compression, kH, not less than	30
Mechanical breaking force in tension, kH, not less than	20
Mechanical breaking torque, kNm, not less than	0,15
Weight, kg, not more than	1,7

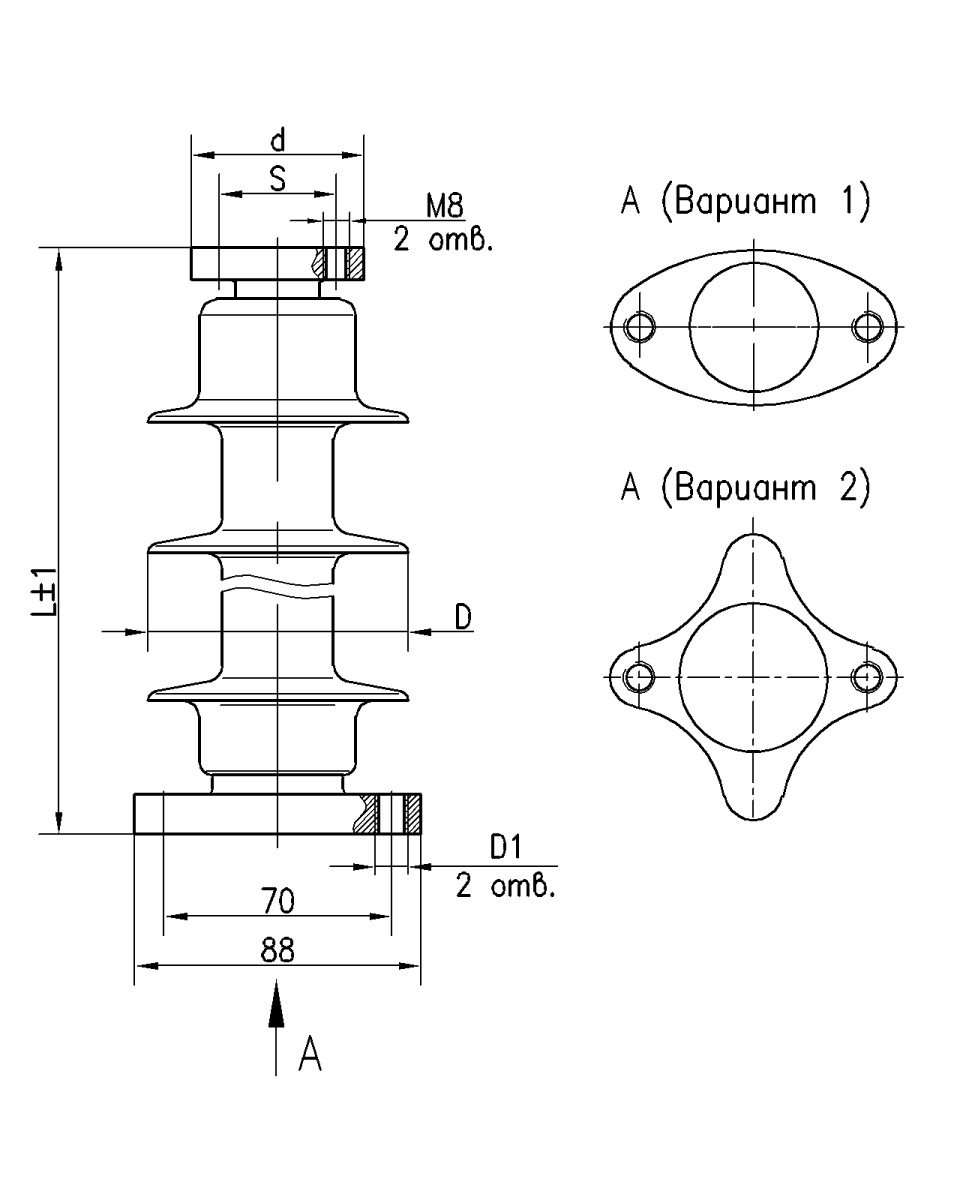

Dimension Drawing:

Designation of the insulator	L, mm	Degree of contamination	Leakage Path Length, mm	D, mm	d, mm	S, mm	D1, mm
IOSC 4/10-I UHL1	175	I	250	80	49	36	M10
IOSC 4/10-I-1 UHL1	175	I	250	80	38	18	M10
IOSC 4/10-II-1 UHL1	215	II	330	80	49	36	M10
IOSC 4/10-II-2 UHL1	190	II	305	80	49	36	M10
IOSC 4/10-II-3 UHL1	190	II	305	80	49	36	F11
IOSC 4/10-IV-1 UHL1	305	IV	500	80	49	36	M10
IOSC 4/10-IV-4 UHL1	215	IV	420	106	49	36	M10
IOSC 4/10-IV-5 UHL1	190	IV	400	106	49	36	M10
IOSC 4/10-IV-6 UHL1	190	IV	400	106	49	36	F11
IOSC 4/10-IV-7 UHL1	215	IV	420	106	49	36	F11
IOSC 4/10-IV-9 UHL1	215	IV	420	84	49	36	M10
