Product Details:

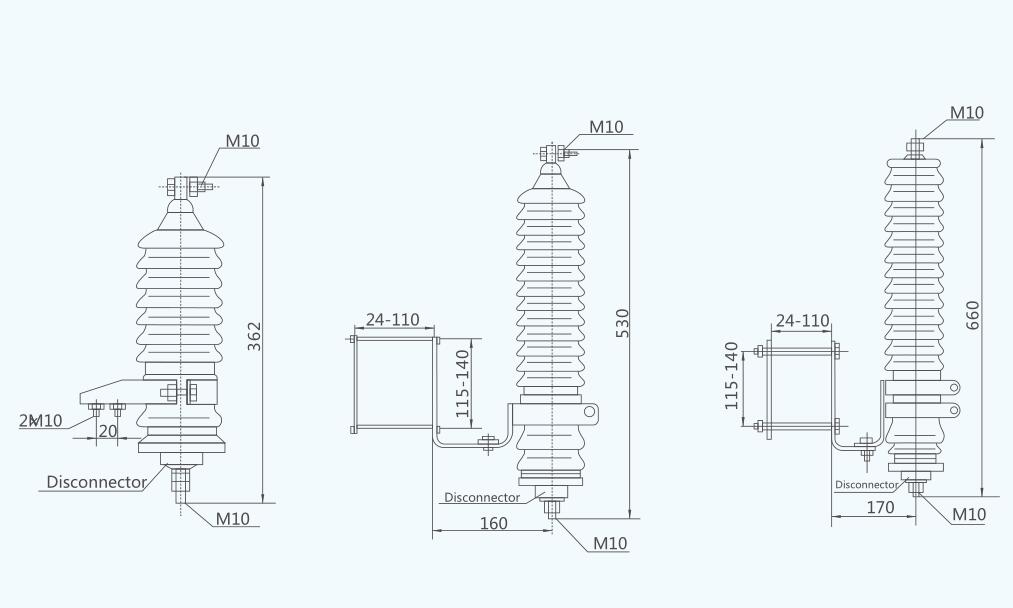

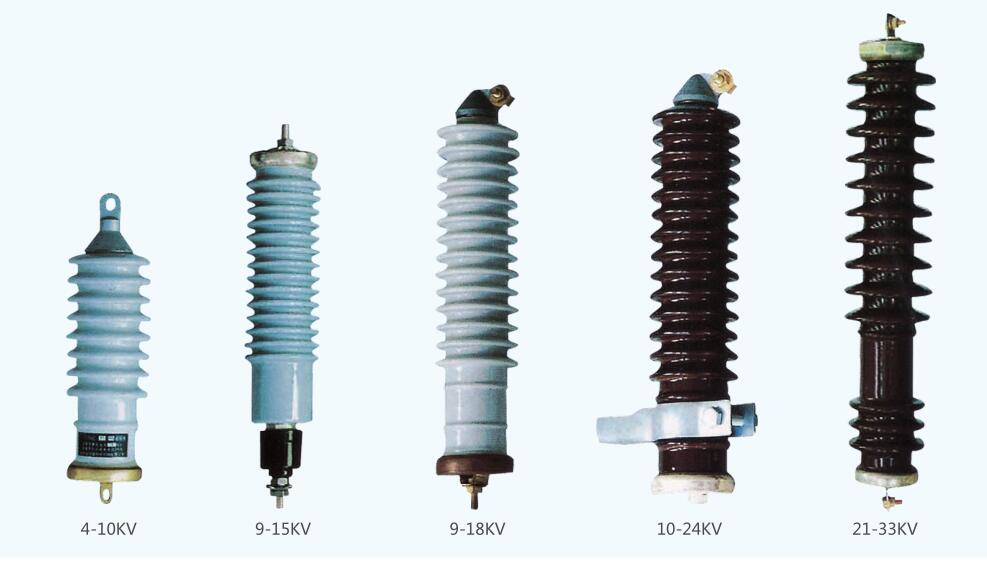

Zinc Oxide Porcelain Distribution Lightning Arrester Y5W、Y5C、Y10W、Y10C Serise Arrester

General Introduction

Zinc oxide porcelain distribution lightning arrester protects against overvoltage caused by direct lightning & transient switching surges. Used in the distribution network. Available in the rated voltage range of 3kV – 42kV

Metal Oxide Porcelain Housing (Gapless) type Surge Arrester for A.C. System (5KA series)

Model	Rated voltage (kVr.m.s)	Continuous operating Voltage(KVr.m.s）	Lightening impulse residual voltage under nominal discharge current (<=KVp)	Line discharge class	Creepage distance (mm)	2ms square wave impulse current withstands (A)	4/10μhigh current impulse Withstands(KAp)
Y5W-6	6	5.1	18		280	150	65
Y5W-9	9	7.65	27		320	150	65
Y5W-12	12	10.2	36		320	150	65
Y5W-15	15	12.75	45		450	150	65
Y5W-18	18	15.3	54		450	150	65
Y5W-21	21	16.8	63		450	150	65
Y5W-24	24	19.2	72		510	150	65
Y5W-27	27	21.6	81		510	150	65
Y5W-30	30	24	90		890	150	65
Y5W-33	33	26.4	99		890	150	65
Y5W-36	36	28.8	108		890	150	65

Metal Oxide Polymer Housing (Gapless) type Surge Arrester for A.C. System (10KA series)

Model	Rated voltage (kVr.m.s)	Continuous operating Voltage(KVr.m.s）	Lightening impulse residual voltage under nominal discharge current (<=KVp)	Line discharge class	Creepage distance (mm)	2ms square wave impulse current withstands (A)	4/10μhigh current impulse Withstands(KAp)
Y10W-6	6	5.1	18	1	280	250	100
Y10W-9	9	7.65	27	1	320	250	100
Y10W-12	12	10.2	36	1	320	250	100
Y10W-15	15	12.75	45	1	450	250	100
Y10W-18	18	15.3	54	1	450	250	100
Y10W-21	21	16.8	63	1	450	250	100
Y10W-24	24	19.2	72	1	510	250	100
Y10W-27	27	21.6	81	1	510	250	100
Y10W-30	30	24	90	1	890	250	100
Y10W-33	33	26.4	99	1	890	250	100
Y10W-36	36	28.8	108	1	890	250	100
Y10W-42	42	33.6	126	2	1256	400	100
Y10W-48	48	39	139	2	1256	400	100
Y10W-54	54	42	160	2	1256	400	100
Y10W-60	60	48	178	2	1440	400	100
Y10W-66	66	52.8	196	2	1440	400	100
Y10W-72	72	57	214	2	1440	400	100
Y10W-84	84	67.2	244	2	2200	400	100
Y10W-90	90	72.5	249	2	2200	400	100
Y10W-96	96	75	265	3	3350	800	100
Y10W-108	108	84	281	3	3350	800	100
Y10W-120	120	96	300	3	3948	800	100
Y10W-150	150	120	416	3	4400	800	100
Y10W-200	200	156	520	3	6700	800	100

Metal Oxide Polymer Housing (Gapless) type Surge Arrester for A.C. System (20KA series)

Model	Rated voltage (kVr.m.s)	Continuous operating Voltage (KVr.m.s）	Lightening impulse residual voltage under nominal discharge current (<=KVp)	Line discharge class	Creepage distance (mm)	2ms square wave impulse current withstands (A)	4/10μhigh current impulse Withstands(KAp)
Y20W-108	108	84	281	3	3555	800	100
Y20W-120	120	96	300	3	4106	800	100
Y20W-150	150	120	416	3	4400	800	100
Y20W-200	200	156	520	3	6700	800	100
Y20W-444	444	324	1106	4	17052	2000	1
