10kV Indoor Current Transformer Cast Resin Current Transformer
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK Price
/pcs
Share:
Top Selling Products
Product Details:
LZZBJ10-10Q 10kV Indoor Current Transformer Cast Resin Current Transformer
General Introduction
LZZBJ10-10Q series is all work-condition post type current transformer with epoxy casting whole sealing insulation, used for measurement of current and electric energy as well as relay protection in the AC circuit of rated frequency 50Hz and rated voltage 10kV.

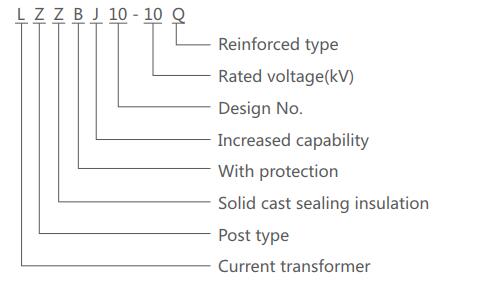

Model&Meaning

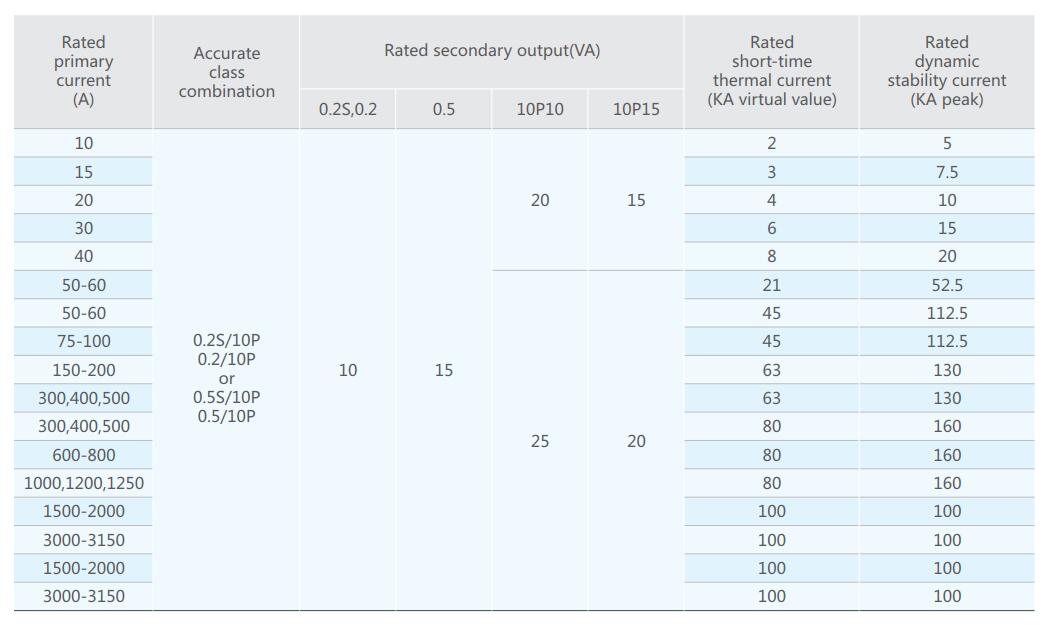

Technical Specification
The performance of products is conformed to IEC standard and GB1208-2006 Current Transformer. Rated insulation level: 12/42/75kV Rated frequency: 50Hz Rated secondary current: 5A, 1A Partial discharge level: In conformity to GB5583-85 standard, its partial discharge is not more than 20PC.

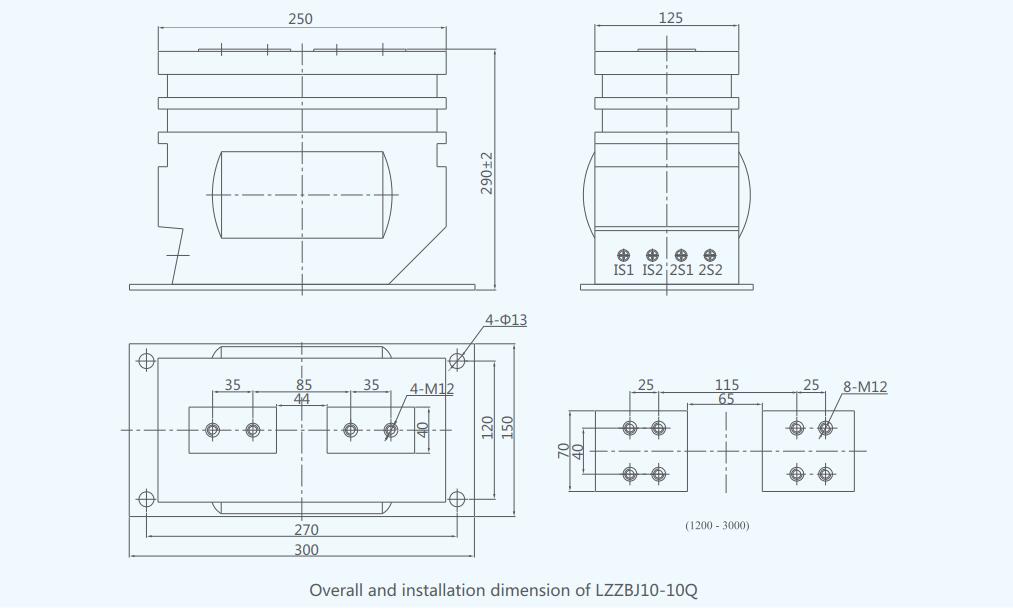

Outline Drawing
