Technical data:

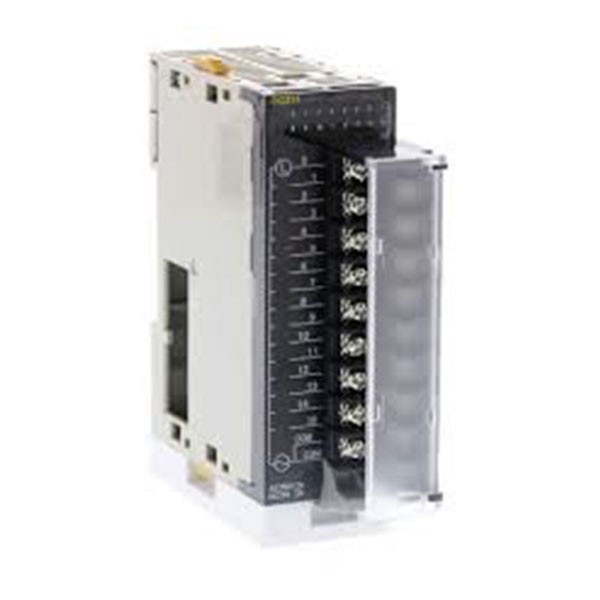

Model	OMRON CJ1W-OC211
Maximum. Switching Capacity	For AC For DC
Capacity of Min. Switching	For DC
Brand Name	OMRON
Made in	Germany
Condition	New
Relay Operation	Resistive Load Operations 150,000 DC 24 Volt
ON Time	15ms maximum
OFF Time	15ms maximum
Number of Circuits	16 Points, 1 Circuit
I/O System	CJ I/O Bus
Unit Type	Basic I/O Unit
Digital Inputs	0
Digital Outputs	16 no
Digital Output Type	Relay NO
Output Current	2A
Fuses	5 A
Common Terminal	2
Connection Type	I/O Screw
Number of I/O Connector	1

CJ1W-OC211 Digital Output Unit-

I/O system	CJ I/O Bus
Expansion unit type	Basic I/O Unit
Type of module	Digital I/O
Number of digital inputs	0
Digital input type	None
Number of digital outputs	16
Digital output type	Relay NO
voltage output	5-250 V
Output current	2 A
Short-circuit protected outputs
I/O connection type	Screwless clamp
Number of I/O connectors	1
Detachable I/O connector
Suitable for safety functions
IOV (V+) terminals Number	0
Number of IOG (V-) terminals	0
Number of COM terminals	4
Height	90 mm
Width	31 mm
Depth	85 mm
Weight	118 g

Fast-speed Digital Output Unit. A Wide Range of Basic Output Units for top Speed Output and Different Applications. This unit is out there for CJ/NJ controller.
