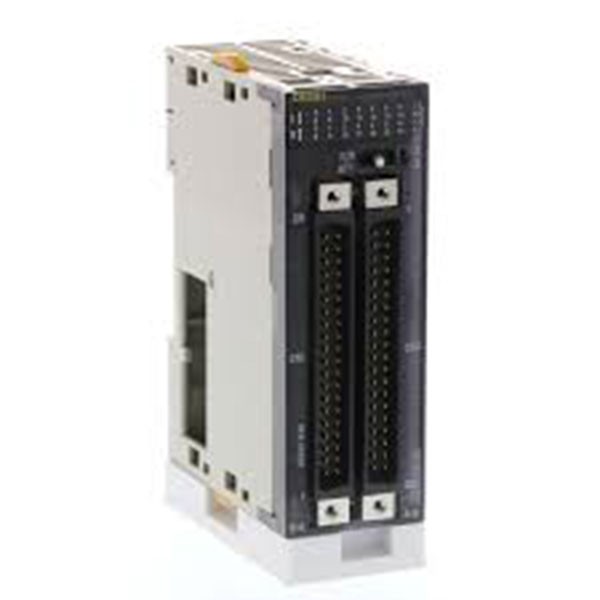

OMRON Output Units Module CJ1W-OD263

The OMRON CJ1W-OD263 is an output module designed for use with the OMRON CJ-series Programmable Logic Controllers (PLCs). This module is used to control various output devices such as solenoids, relays, and lamps by providing digital output signals. Here’s a detailed overview of the CJ1W-OD263 module:

OMRON CJ1W-OD263 Output Module Overview

Key Features

1. Output Specifications:
   • Number of Outputs: 64 points (channels)
   • Output Type: Transistor output
   • Output Voltage: 24 VDC
   • Output Current: 0.5 A per point, 5 A per common
2. Connection and Wiring:
   • Terminal Block: Removable terminal block for easy wiring and maintenance.
   • Common Terminal: Multiple common terminals for grouping output points, improving wiring efficiency.
3. Indicators:
   • LED Indicators: Individual LEDs for each output point to provide visual status indication (ON/OFF).
4. Isolation:
   • Optical Isolation: Provides isolation between the output circuits and the internal logic of the PLC to protect against electrical noise and surges.
5. Protection:
   • Overcurrent Protection: Protects the module and connected devices from overcurrent conditions.
   • Short-circuit Protection: Built-in protection against short circuits in the output lines.
   • Overvoltage Protection: Protects the module from voltage spikes and surges.
6. Response Time:
   • Fast Switching: Ensures quick response times suitable for high-speed applications.

Applications

• Manufacturing Automation: Controls actuators, relays, and other output devices in automated production lines.
• Material Handling: Manages conveyor systems, sorting machines, and robotic arms.
• Packaging Machines: Controls solenoids and relays for precise packaging operations.
• Building Automation: Manages lighting, HVAC systems, and security controls.
• Process Control: Provides digital output signals to control valves, pumps, and other process equipment.

Benefits

• High Density: With 64 output points in a single module, it offers a high-density solution for applications requiring numerous outputs.
• Reliability: OMRON’s robust design and protection features ensure reliable operation in industrial environments.
• Ease of Maintenance: Removable terminal block and LED indicators simplify wiring, troubleshooting, and maintenance.
• Flexibility: Multiple output points and commons provide flexibility in designing control systems.
